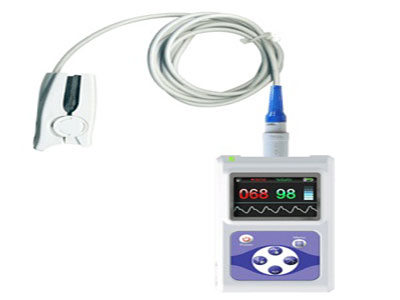

Bluetooth Pulse oximeter

Model: WH60DW
fake uk watches
replica breitling

Major Features

◆Small in volume、light in weight and convenient in carrying

◆Operation of the product is simple ,low power consumption

◆Operation menu for the function setting

◆SpO2 value display

◆Pulse rate value display, bar graph display

◆Pulse waveform display

◆Screen brightness can be changed

◆A pulse rate sound indication

◆Review function

◆With measured data overruns limits and low-voltage alarm function, the

upper/down alarm range is adjustable

◆Battery capacity indication)

◆Low-voltage indication: low-voltage indicator appears before working abnormally

which is due to low-voltage ,and with alarm function

◆With SpO2 value and pulse rate value of storage, the storage data can be uploaded

to computers

◆Real-time data can be transmitted to computers

◆Connected with an external oximeter probe

◆Wireless communication function(Bluetooth Function) (WH60DW)

Main performance

Display Mode: 1.8" Color OLED display

Screen Resolution: 160*128

SpO2 Measuring Range: 0%～100%, (the resolution is 1%).

Accuracy: 70%～100%: ±2% ,Below 70% unspecified.

PR Measuring Range: 30bpm～250bpm, (the resolution is 1bpm)

Accuracy: ±2bpm or ±2% (select larger)

Measurement Performance in Weak Filling Condition:

SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2

error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).

Resistance to Surrounding Light: The deviation between the value measured in the

condition of man-made light or indoor natural light and that of darkroom is less than

±1%.

Power Consumption: less than 100mA

Voltage: DC 3.0V

Power Supply: Alkaline battery(2AA)

Battery Working Hour: Theoretical number is 44 hours.

Safety Type: Interior Battery, BF Type

Accessories

Sell in standard:

◆A user manual

◆A data line

◆A disk (PC software)

◆An oximeter probe

Sell in addition:

◆Other oximeter probe(Refer to probe application instruction for details and notice

renewal）

Physical Identity fake watches for men

Dimension: 110(L) × 60(W) × 23(H) mm

Weight: About 180g (with Alkaline battery(2AA))

Qualification

WH60D passed FDA and CE
